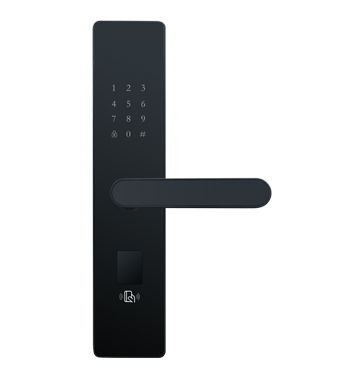

一．Door lock product description

Wi-Fi screenless networking card lock is a semi-automatic lock developed using AI smart chips and low-power Wi-Fi networking technology. It has multiple authentication modes of card swiping and password. It can be issued by card and password. Set and temporary passwords to realize the door opening function, and upload the real-name verification information and entry and exit records to the "Face Recognition Smart Device Cloud Management Platform (PaaS)", and then connect to various business layer software systems through the API interface of PaaS.

二．Door lock product characteristics

●Adopts low-power AI chip and lithium battery power supply to realize long-term battery life of the smart lock;

●Use IC card, long-term password, and temporary password as identity verification methods;

●Can be used 24 hours a day;

●Supports card issuance, password setting, and temporary password to realize door opening function;

●Supports key input and has voice prompts for successful recognition;

● Supports management of different users such as administrators, ordinary residents, and cleaners, including management of identity information, check-in validity period, user categories, etc.

●Low-power Wi-Fi networking, supports triggered networking or scheduled networking, has fast communication speed, and can use existing broadband networks as a basis;

●Supports front and rear Wi-Fi, adapting to different corridor Wi-Fi or room Wi-Fi environments.

三．PaaS face recognition smart device management cloud platform
Our company provides the API interface of the PaaS face recognition notification device management cloud platform to connect with the customer's SaaS business platform to achieve cloud-to-cloud connection. The PaaS platform supports cloud or local deployment (private)

Based on our networked face lock, we have developed applications in hotels, apartments, public rental housing, dormitory management and other industries. In order to facilitate customers' business layer management software (SaaS) to connect with our face lock and other smart devices, we have specially developed a set of "Face recognition smart device management cloud platform" (hereinafter referred to as PaaS platform) that manages smart devices such as face locks. This cloud platform serves as a link between the business layer platform (application layer) and smart devices (perception layer). , the face recognition smart device management cloud platform performs reliable device management and data management of smart devices by accessing various smart terminal devices (including face door locks, face access control, etc.), and provides API interfaces and third-party services layer management software for data interaction.

Specification parameter

Model	FU320-2W
Color	nano black
Lock body material	Aviation aluminum, anodized
Panel technology	Acrylic
Size	Front lock body 3657624.5mm, rear lock body 3657626mm
Suitable for door thickness	45-110mm
Door opening direction	Open left, open right
security key	Class C lock cylinder
Suitable for locks	Semi-automatic, supports 6068 lock body/electronic lock body
Unlock mode	IC card, password (long-term/temporary), key
User capacity	Password, card swipe (100 users each)
Enter	12 buttons
IC card	Support 13.56Mhz
Amount of users	100 people
Anti-folding alarm	support
Type-C emergency power supply interface	Support (power bank emergency unlocking)
Working voltage (8.4V)	Lithium battery powered
Way of communication	Wi-Fi
Voice prompts	support
Operating temperature	-20~55 degrees
language	Standard Chinese and English
